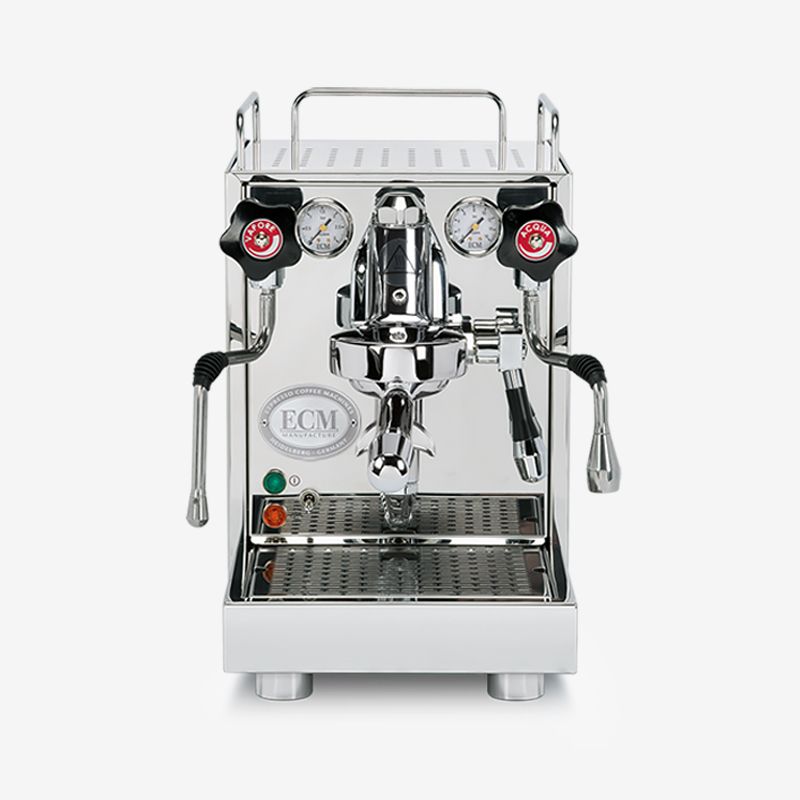

ECM Mechanika V Slim Espresso Machine
ECM Mechanika V Slim Espresso Machine, Heat Exchanger System with Vibration Pump
ECM Mechanika V Slim Espresso Machine is masterpiece in quality and handcrafted precision down to the last detail. The noble but discreet design with classic lines is rounded off with an elegant stainless steel rail on top. Convenient and functional in everyday life: The detachable cup warmer tray allows for easy access to the water tank - without removing the cups.
ECM Mechanika V Slim Espresso Machine
ECM Mechanika V Slim Espresso Machine, compact from the outside, wow from the inside. High-quality ECM brew group with innovative stainless steel brewing bell. Even more "barista feeling" through ergonomically angled ECM portafilter with weight-balanced shape. Nostalgic rotary valves elaborated with great care for details. Allrounder in a compact design with a practical heat exchanger system.
- • Very compact design
- • High-end ECM brew group with innovative stainless steel bell
- • Large stainless steel boiler (2.2 l)
- • Easy access to the water tank due to removable cup warming tray
- • 2 ergonomic ECM portafilters with weight-balanced shape and angled grip
- • Easy access to the expansion valve for an individual brew pressure adjustment
|
Make |
ECM Heidelberg |
|
Model |
Mechanika V Slim |
|
Boiler Type |
Heat Exchanger (HX), |
|
Brew Group |
High-end ECM brew group with innovative stainless steel |
|
Operation |
E61 Lever, |
|
Indicator Lights |
On, off |
|
Size and Weight |
395mmH x 250mm W x 445mm D/ 20.2Kg |
|
Internal Water tank Capacity |
2.8 Litres |
|
Tank Access |
Top |
|
Water Connection |
Reservoir Only |
|
Boiler Volume (Steam,Brew) |
2.2l |
|
Boiler Construction |
Stainless Steel |
|
Insulated Steam/Brew Boiler |
Steam, Brew, Both, N/A |
|
Pressure Gauges |
boiler and group head gauge |
|
Adjustable Brew Pressure |
Yes |
|
Pump Type |
Vibration, |
|
No Burn Steam Wand |
Yes |
|
No Burn Water Wand |
Yes/No or N/A |
|
Steam/Water Valve Type |
Compression/Non compression |
|
Temperature Control |
Pressurestat |
|
Drip Tray capacity/Construction |
Plastic, Steel/x ml |
|
Drip Tray drain kit for plumbed operation |
Not available |
|
Body Construction |
Painted Steel |
|
Colours Available |
No or colours |
|
Low Water Cut Off |
Yes, |
|
Low Water Indication |
flashing light |
|
Number Porta Filter Holders |
1 single and 1 double |
|
Free Tamper |
Yes |
|
Feet Height Adjustable |
Yes/No |
|
Time to froth 200ml of milk |
Time to froth 200ml of milk |
|
Other Features |
Steel-plated heating of Incoloy 800 |
|
Other Feature |
Copper tubing with brass fittings and tubes |
|
Other Feature |
Professional lever valve technology, alternatively rotary valves technology |
